Short description
Bed linen sewing includes closing seams and combined closing and serging operations. Both lockstitch and combined chainstitch/overlock constructions are used in the AMANN application recommendations.

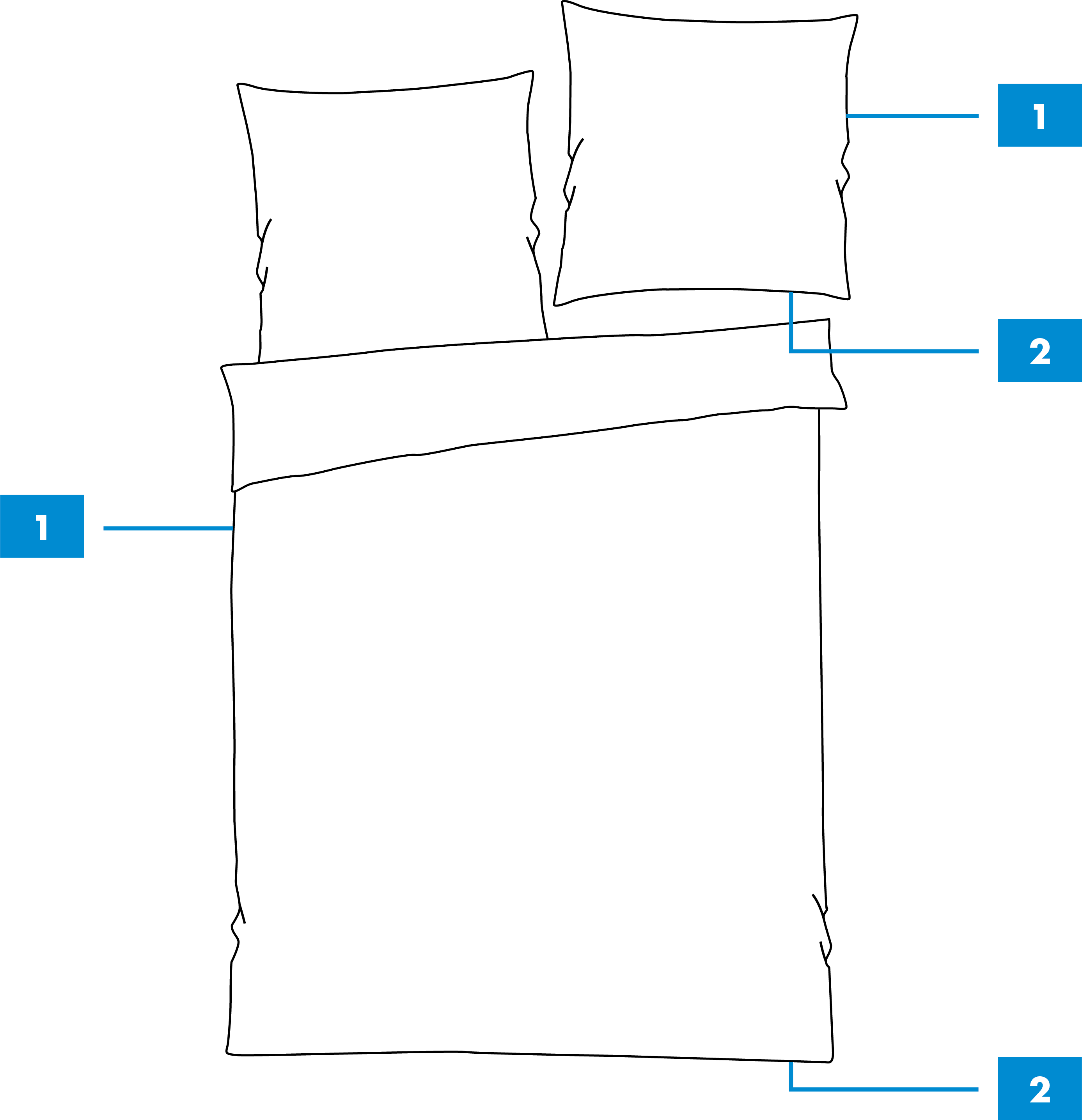

Closing and serging seams
Closing and edge finishing can be carried out in one sewing operation.
The application guide specifies a 401 + 504 3-thread overlock stitch.
The recommended configuration is:
- Needle thread: Saba 120
- Tex 24
- Looper thread: Saba 120
- Tex 24
- Minimum needle size: Nm 65 / No. 9
Lockstitch closing seams
301 lockstitch can also be used for closing bed linen.
The application guide specifies:
- Needle thread: Saba 120
- Tex 24
- Bobbin thread: Saba 120
- Tex 24
- Minimum needle size: Nm 65 / No. 9
Thread combinations
The thread position depends on the seam construction.
The combined 401 + 504 seam uses needle and looper thread, while the 301 lockstitch uses needle and bobbin thread.
In both application examples, Saba 120 / Tex 24 is specified.

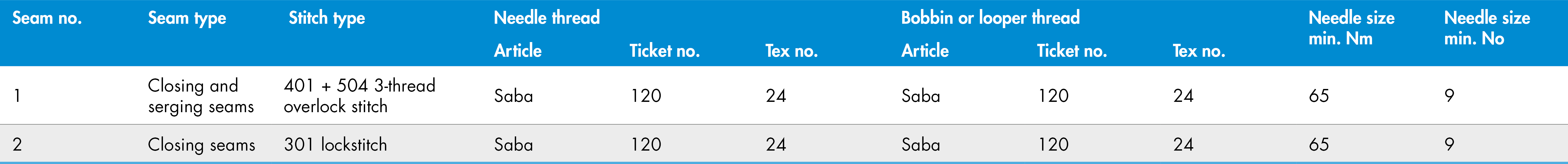

Quick facts
| Property | Value |
|---|---|
| Main application | Bed linen |
| Main seam types | Closing and serging seams, closing seams |
| Stitch types | 401 + 504 3-thread overlock stitch and 301 lockstitch |
| Thread positions | Needle thread, looper thread, bobbin thread |
| Closing and serging thread | Saba 120 / Tex 24 as needle and looper thread |
| Lockstitch thread | Saba 120 / Tex 24 as needle and bobbin thread |
| Minimum needle size | Nm 65 / No. 9 |
| Combined operation | 401 + 504 combines closing and serging in one seam construction |
Also known as
Technical terms
- Bed linen
- Closing seams
- Closing and serging seams
- 401 + 504
- 3-thread overlock stitch
- 301 lockstitch
- Needle thread
- Bobbin thread
- Looper thread
Common descriptions
- Bed linen sewing
- Sewing bed linen
- Bed linen closing seams
- Closing and serging bed linen
- Lockstitch seams for bed linen
International terminology
| Language | Common terminology |
|---|---|
| English | Bed linen sewing, bed linen seams |
| German | Bettwäsche nähen, Bettwäschenähte |
| French | Couture de linge de lit |
| Italian | Cucitura di biancheria da letto |
| Spanish | Costura de ropa de cama |
| Chinese | 床上用品缝制 |
| Vietnamese | May ga giường, may đồ dùng giường ngủ |
FAQ
-
Bed linen can be sewn with combined closing and serging seams or with 301 lockstitch closing seams.
-
A combined 401 + 504 3-thread overlock stitch can be used to close and serge bed linen.
-
Saba 120 / Tex 24 can be used as both needle and looper thread for a 401 + 504 closing and serging seam.
-
Yes. 301 lockstitch can be used for closing seams in bed linen production.
-
Saba 120 / Tex 24 can be used as both needle and bobbin thread.
-
For the 301 lockstitch and 401 + 504 configurations shown here, the minimum needle size is Nm 65 / No. 9.
-
The combined 401 + 504 seam uses needle and looper thread, while the 301 lockstitch uses needle and bobbin thread.
-
Yes. A 401 + 504 seam can combine closing and serging in one seam construction.
