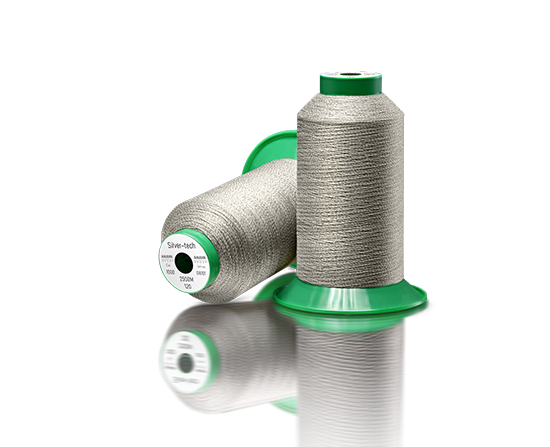

Silver-tech
The conductive hybrid sewing and embroidery thread with silver content
Raw material:
- Silver coated polyamide/polyester
Construction type:
- Hybrid thread
Product properties:
- special sewing and embroidery thread with a silver coating
- for conductive seams and surfaces
- for seam positions that require antimicrobial characteristics
- no cell damaging effect in the Cytotoxicity Test according to DIN EN ISO 10993-5 for Silver-tech 120
- textile electrodes as sensors and actuators
Main application:
- Smart textiles
- Medtech
Other applications:
Certifications:
Further information:
| Ticket no. | Embroidery thread | Tex no. | Make-up | Number of colours | Needle size min. Nm | Needle size min. No | Resistance |
| 30 | - | 96 | 500 m FS | 1 | 120 | 19 | < 85 Ω/m |
| 50 | - | 62 | 1500 m FS | 1 | 90 | 14 | < 150 Ω/m |
| 120 | 40 | 28 | 2500 m FS | 1 | 75 | 11 | < 530 Ω/m |
Available colour no.: 1000 = raw, silver-grey due to the silver content. Due to the silver content and oxidation processes, the
grey colour will get slightly darker over the time.
Legend:
Co
FS/KS
XW
SSP
